Y Strainer by Intechvalve – protecting pipelines and equipment

What Is a Y Strainer? – Intechvalve explains

At Intechvalve, we define a Y strainer as a mechanical filtering device designed to remove solid particles, debris, scale, and foreign matter from flowing liquids, gases, or steam in a pipeline. The name Y comes from the distinctive Y shaped body configuration, which positions the straining screen at an angle to the flow path. This design allows for efficient debris collection while minimizing pressure drop. Every Intechvalve Y strainer is engineered to protect downstream equipment including pumps, control valves, flow meters, heat exchangers, and steam traps.

Key Features and Value Propositions of Intechvalve Y Strainers

Effective Debris Removal: I design Intechvalve Y strainers with precision perforated or mesh screens that capture particles of various sizes, ensuring clean media reaches sensitive equipment.

Low Pressure Drop: The Y pattern design of Intechvalve strainers allows fluid to flow with minimal resistance when the screen is clean, reducing energy consumption.

Compact and Space Saving: Unlike basket strainers that require vertical space for screen removal, Intechvalve Y strainers have a compact inline design ideal for tight installations.

Easy Maintenance: We engineer Intechvalve Y strainers with a removable blow off or drain connection. The screen can be accessed and cleaned without removing the strainer body from the pipeline.

Versatile Orientation: Intechvalve Y strainers can be installed in horizontal or vertical pipelines with flow direction either upward or downward, providing installation flexibility.

Wide Material Selection: We manufacture Intechvalve Y strainers in various materials to match your piping system and fluid characteristics.

Wide Industry Use: From water treatment, HVAC systems, steam plants, oil and gas, petrochemical, power generation, to marine applications, Intechvalve Y strainers provide essential protection.

How It Works – Principle of Operation by Intechvalve

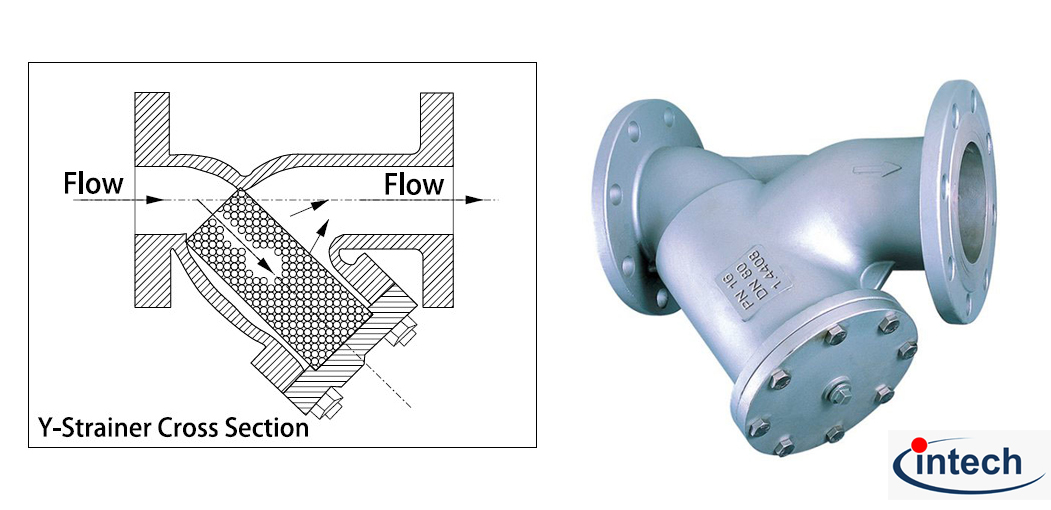

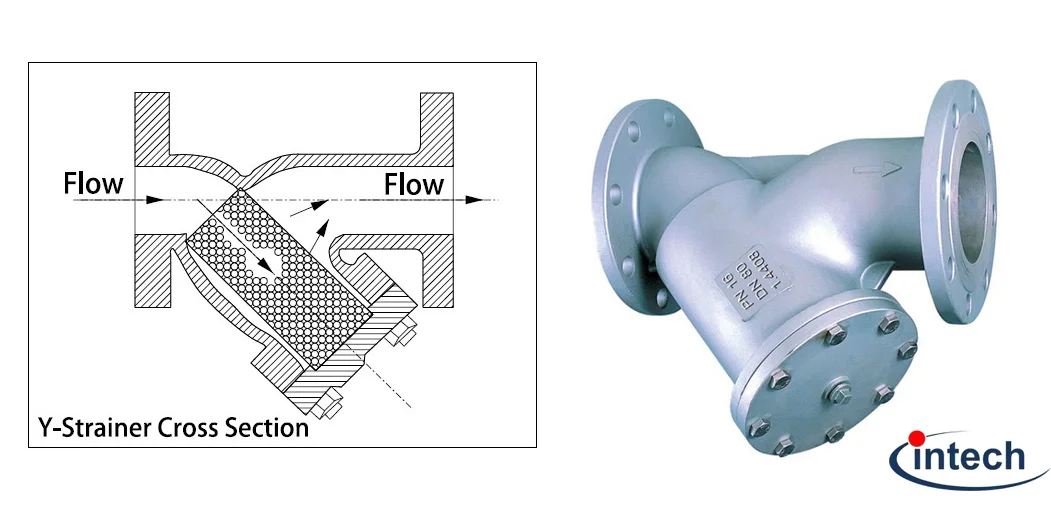

Fluid enters the Intechvalve Y strainer inlet and passes through a perforated or mesh screen located in the angled leg of the Y body. Solid particles larger than the screen openings are trapped on the screen surface, while clean fluid continues through the outlet. The captured debris accumulates in the sump area of the strainer leg. When cleaning is required, the operator removes the drain plug or opens the blow off valve to flush out accumulated particles, or removes the screen cap to access and clean the screen element. This simple yet effective design ensures continuous protection of downstream equipment.

Typical Technical Specifications – Intechvalve Y Strainers

Common Types of Y Strainers manufactured by Intechvalve

• Flanged Y Strainer — For easy installation and removal in pipeline systems. Intechvalve flanged Y strainers are widely used in water, oil, and gas applications.
• Threaded Y Strainer — For small bore piping up to 2 inches. Intechvalve threaded strainers are common in instrumentation and small process lines.
• Butt Weld and Socket Weld Y Strainer — For high pressure and high temperature services where threaded connections are not suitable. Intechvalve weld end strainers are used in power and petrochemical plants.
• Cast Steel Y Strainer — Robust construction for severe service conditions. Intechvalve cast steel strainers handle high pressures and temperatures.
• Stainless Steel Y Strainer — For corrosive media and hygienic applications. Intechvalve stainless steel strainers are used in chemical, pharmaceutical, and food processing industries.
• Bronze and Brass Y Strainer — For water, HVAC, and marine applications. Intechvalve bronze strainers offer excellent corrosion resistance in seawater.

Screen Types and Options from Intechvalve

• Perforated Screen — For coarse filtration, removing larger particles. Available in various hole diameters from Intechvalve.
• Mesh Lined Screen — Perforated screen backed by wire mesh for finer filtration. Intechvalve offers mesh lined screens for applications requiring fine particle removal.
• Double Mesh Screen — Two layers of mesh for enhanced filtration. Available from Intechvalve for critical applications.
• Magnetic Screen — Incorporates magnetic rods to capture ferrous particles. Intechvalve offers magnetic Y strainers for specific applications.

Use Cases for Intechvalve Y Strainers

• Upstream of pumps – Intechvalve Y strainers protect pump internals from debris damage.
• Before control valves and regulators – Our strainers prevent seat damage and clogging in critical control equipment.
• Flow meter protection – Intechvalve Y strainers ensure accurate measurement by keeping meters clean.
• Steam lines ahead of steam traps – Protect traps from pipe scale and debris with Intechvalve strainers.
• Heat exchanger and chiller inlets – Prevent fouling and maintain efficiency with Intechvalve Y strainers.
• Water treatment and distribution systems – Remove suspended solids before water enters treatment equipment.
• Hydraulic and lubrication systems – Fine mesh Intechvalve strainers protect sensitive hydraulic components.

At Intechvalve, we specialize in protection. Our Y strainers are engineered to safeguard your valuable equipment, reduce maintenance downtime, and extend the life of your pipeline system.
