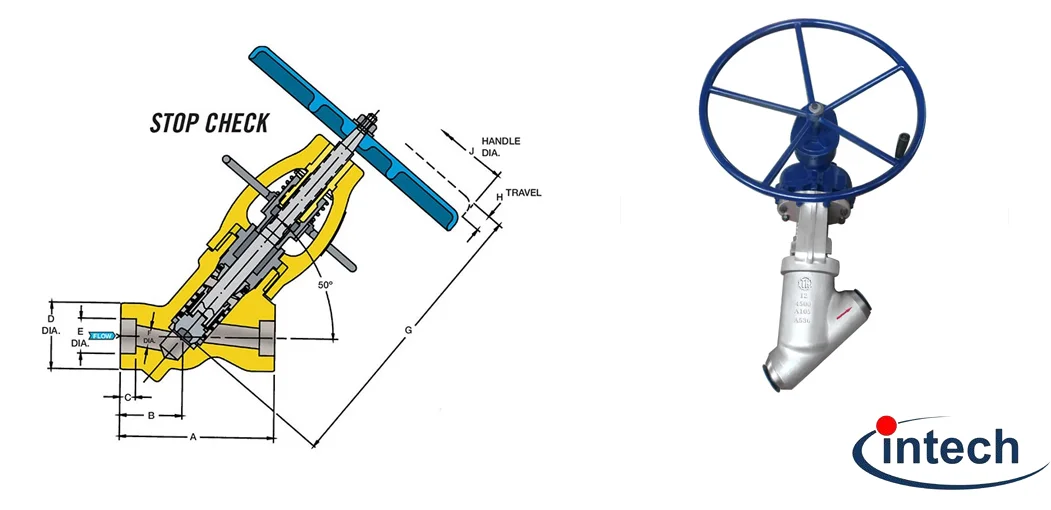

Y Stop Check Valve Pressure Seal by Intechvalve – combined isolation and automatic backflow prevention for high pressure services

What Is a Y Stop Check Valve Pressure Seal? – Intechvalve explains

At Intechvalve, we define a Y stop check valve with pressure seal bonnet as a specialized multi-functional valve that combines the features of a stop valve (globe valve) and a check valve in a single body with a Y pattern configuration for reduced pressure drop. This valve serves two distinct purposes: it can be manually closed to stop flow completely (stop function), and it automatically prevents backflow when in the open position (check function). The pressure seal bonnet design uses internal pressure to enhance the seal – as line pressure increases, the sealing force on the gasket also increases, creating a tighter seal. This self sealing design allows Intechvalve Y stop check valves to be lighter, more compact, and more economical than bolted bonnet valves for the same pressure class while providing superior sealing performance under high pressure conditions. The Y pattern body design provides a straighter flow path than traditional T pattern globe valves, resulting in lower pressure drop and improved efficiency in high pressure systems.

Key Features and Value Propositions of Intechvalve Y Stop Check Valves Pressure Seal

Dual Functionality: I design Intechvalve Y stop check valves to serve two critical functions in a single body – positive isolation when manually closed, and automatic backflow prevention when open. This eliminates the need for separate stop and check valves, reducing installation costs, space requirements, and potential leak points.

Self Sealing Pressure Seal Bonnet: The pressure seal bonnet design uses internal pressure to enhance the seal. Higher line pressure creates a tighter seal, ensuring leak free operation even under the most demanding high pressure conditions.

Y Pattern Body Design: The Y pattern configuration provides a straighter flow path compared to traditional T pattern globe valves, resulting in significantly lower pressure drop and improved system efficiency – essential for high pressure applications.

High Pressure Capability: Intechvalve Y stop check valves with pressure seal bonnets are designed for high pressure services from Class 600 up to Class 4500, handling pressures that would require massive flanges and numerous bolts in conventional designs.

High Temperature Service: With appropriate material selection, Intechvalve Y stop check valves handle temperatures up to 650 degrees Celsius, making them ideal for power generation and high temperature process applications.

Controlled Closing: The stop check design allows the disc to be held open mechanically, preventing chattering and ensuring stable operation under varying flow conditions.

Renewable Seat and Disc: Intechvalve Y stop check valves feature renewable seat rings and disc faces, allowing easy maintenance and extended service life without replacing the entire valve.

Wide Industry Use: From power generation (boiler feedwater, main steam drain, turbine bypass), to oil and gas production, refining, and petrochemical processing, Intechvalve Y stop check valves with pressure seal bonnets provide reliable isolation and backflow prevention in critical high pressure services.

How It Works – Principle of Operation by Intechvalve

An Intechvalve Y stop check valve with pressure seal bonnet operates using a disc that is connected to a stem, allowing manual positioning, but also free to move independently when the stem is retracted. The valve has two modes of operation:

Stop Valve Mode (Manual Isolation): When the handwheel or actuator is turned clockwise, the stem lowers the disc onto the seat, providing positive mechanical shut off regardless of flow conditions. This isolates the downstream piping completely.

Check Valve Mode (Automatic Backflow Prevention): When the stem is fully retracted (valve "open"), the disc is free to rise and fall with flow conditions. Forward flow lifts the disc off the seat, allowing flow through the valve. If flow stops or reverses, the disc drops back onto the seat automatically, preventing backflow. The disc is guided to ensure stable operation without chattering.

Y Pattern Flow Path: The body is designed with a Y configuration where the inlet and outlet are at an angle, and the seat is oriented at approximately 45 degrees to the flow. This provides a straighter flow path than T pattern globe valves, reducing turbulence and pressure drop.

The pressure seal bonnet operates on the same principle as other pressure seal valves – internal pressure acts on the bottom of the bonnet, forcing it upward and compressing the gasket against the body's tapered sealing surface, creating a tighter seal as pressure increases.

Typical Technical Specifications – Intechvalve Y Stop Check Valves Pressure Seal

Common Types of Y Stop Check Valves manufactured by Intechvalve

• Standard Y Stop Check Valve Pressure Seal — The most common design for high pressure applications requiring both isolation and backflow prevention. Intechvalve standard Y stop check valves feature a guided disc design for stable operation in both modes.
• Y Stop Check Valve with Integral Bypass — Features an integral bypass connection for pressure equalization before opening, reducing operating torque and preventing seat damage. Intechvalve offers bypass options for large valves and high pressure applications.
• Y Stop Check Valve for Boiler Feedwater — Specifically designed for boiler feedwater recirculation and startup systems in power plants, with materials and testing to meet power industry requirements.
• Y Stop Check Valve for Main Steam Drain — Designed for main steam drain and vent services in thermal power plants, handling high temperature steam with rapid thermal cycling.
• Y Stop Check Valve for Turbine Bypass — Specialized design for turbine bypass systems, with characteristics optimized for the rapid response and high pressure drop requirements of bypass service.
• Y Stop Check Valve with Soft Seat — For applications requiring bubble tight shut off, Intechvalve offers Y stop check valves with soft seat inserts for the stop function while maintaining metal seat for check function.

Stop Check Valve vs Separate Stop and Check Valves – Intechvalve Selection Guide

• Y Stop Check Valve from Intechvalve: Combines isolation and backflow prevention in a single valve body. Reduces installation space, weight, cost, and potential leak points. Ideal for applications where space is limited, weight must be minimized, and both functions are required in the same line.
• Separate Stop and Check Valves from Intechvalve: Two individual valves provide independent isolation and check functions. Allows independent maintenance, different pressure ratings if required, and may be preferred for very large sizes or where redundancy is desired.
• Intechvalve Recommendation: For high pressure applications where both isolation and backflow prevention are required in the same line, and where space and weight savings are important, Intechvalve Y stop check valves with pressure seal bonnets offer significant advantages over separate valves.

Applications for Intechvalve Y Stop Check Valves Pressure Seal

• Power generation – Intechvalve Y stop check valves are essential components in thermal power plants, used for boiler feedwater recirculation, main steam drain systems, turbine bypass, high pressure heater drain, and startup systems where both isolation and backflow prevention are required.
• Boiler systems – Feedwater recirculation, startup vents, and drain valves use Intechvalve Y stop check valves for reliable dual function service at high pressures and temperatures.
• Oil and gas production – High pressure wells, production manifolds, and injection systems use Intechvalve Y stop check valves where space and weight savings are valuable.
• Refining industry – Hydrocracking units, catalytic crackers, and high pressure hydrotreaters require Intechvalve Y stop check valves for process lines needing both isolation and backflow prevention.
• Petrochemical processing – High pressure processes including ammonia synthesis, methanol production, and ethylene manufacturing use Intechvalve Y stop check valves for critical services.
• Combined cycle power plants – Heat recovery steam generator (HRSG) drain and vent systems, steam turbine bypass, and feedwater systems use Intechvalve Y stop check valves.

At Intechvalve, we specialize in multi-functional high pressure flow control solutions. Our Y stop check valves with pressure seal bonnets are engineered to provide both positive isolation and automatic backflow prevention in a single, compact valve body, with the Y pattern design minimizing pressure drop and the self sealing bonnet ensuring leak free operation in the most demanding high pressure and high temperature applications.
