What Is a Globe Valve? – Intechvalve explains

At Intechvalve, we define a globe valve as a linear motion control valve that uses a movable disc and a stationary ring seat to regulate fluid flow in a pipeline. Unlike gate valves which are designed primarily for isolation, our globe valves excel at throttling, flow regulation, and frequent operation. The name globe comes from the spherical body shape that houses the seat and disc mechanism. Every Intechvalve globe valve is engineered for precise control and durability.

Key Features and Value Propositions of Intechvalve Globe Valves

Excellent Throttling Capability: I design Intechvalve globe valves for accurate flow control. The linear motion of the disc allows fine adjustments to flow rate, making them ideal for regulating applications.

Good Shut Off Capability: When fully closed, Intechvalve globe valves provide reliable shut off with minimal leakage, thanks to precision matched disc and seat.

Higher Pressure Drop: Unlike gate valves, our globe valves are designed with a change in flow direction, which creates a controlled pressure drop. This is intentional and beneficial for throttling applications.

Quick Stem Motion: The multi turn stem in Intechvalve globe valves provides rapid response to control signals, essential for process automation.

Easy Maintenance: We engineer Intechvalve globe valves with easily accessible internals. The seat and disc can be repaired or replaced without removing the valve from the pipeline.

Versatile Actuation: Intechvalve offers handwheel, gear, electric, pneumatic, or hydraulic actuation options for globe valves.

Wide Industry Use: From steam systems, boiler feed water, cooling water, fuel oil systems, to chemical dosing and pharmaceutical processes, Intechvalve globe valves are the preferred choice for control.

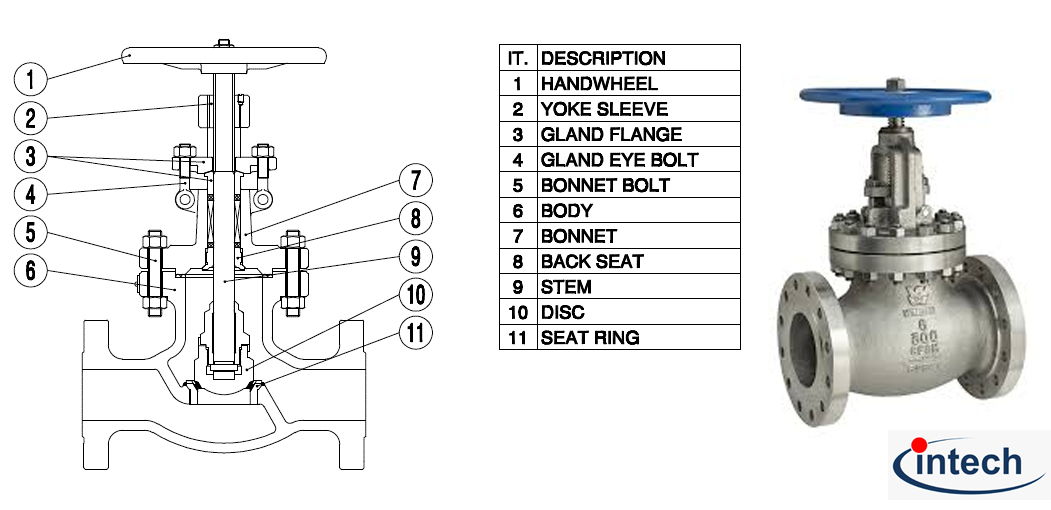

How It Works – Principle of Operation by Intechvalve

A handwheel or actuator rotates the valve stem, which moves the disc vertically. When the disc lifts away from the seat, fluid flows through the gap between the disc and seat. The flow path in an Intechvalve globe valve typically enters below the seat and exits above the disc, ensuring that when the valve closes, the pressure helps seat the disc tightly. This design provides excellent control characteristics. The linear motion of the disc allows infinite positioning between fully open and fully closed, enabling precise throttling.

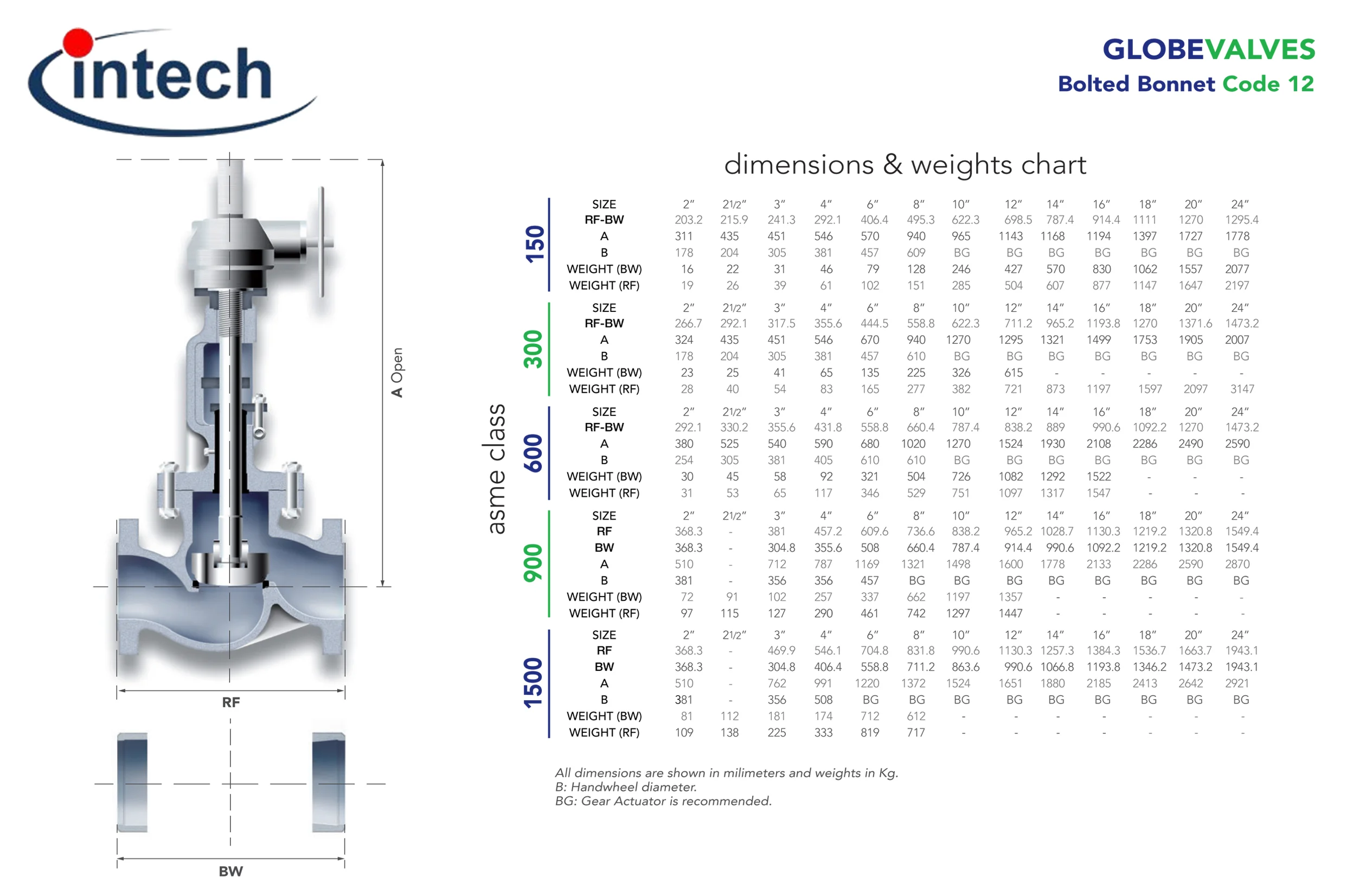

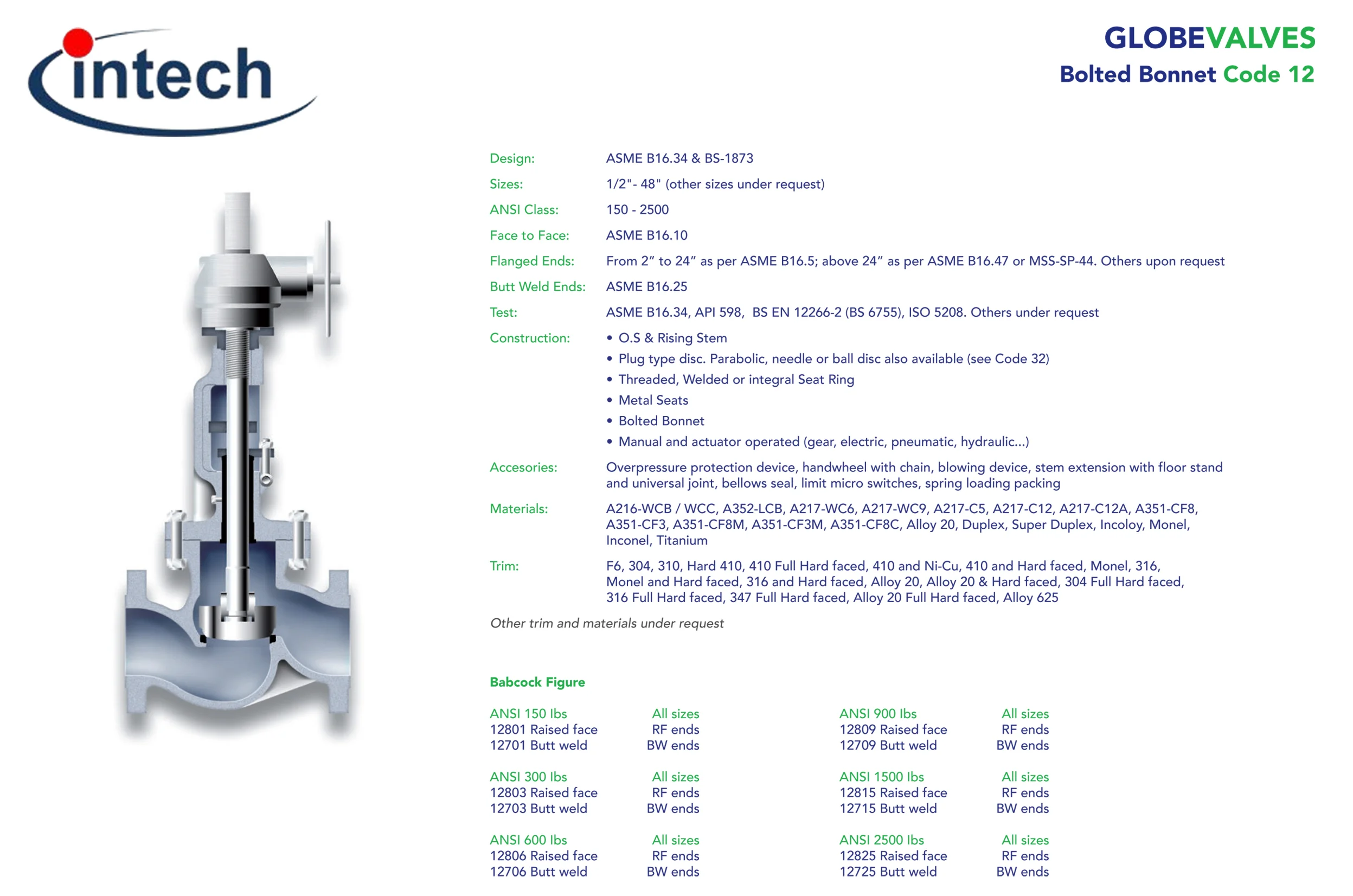

Typical Technical Specifications – Intechvalve Globe Valves

Common Types of Globe Valves manufactured by Intechvalve

• Z Type Globe Valve (Standard Pattern) — Most common design with a Z shaped body. Intechvalve manufactures these for general throttling and isolation.
• Y Pattern Globe Valve — Body at 45 degree angle, offering lower pressure drop. Ideal for high pressure and high temperature services. Intechvalve Y pattern valves are widely used in power plants.
• Angle Pattern Globe Valve — Fluid enters horizontally and exits vertically downward. Intechvalve angle valves are used in boiler feed water and drain systems.
• Needle Valve (Miniature Globe Valve) — For very fine flow control in instrumentation and small bore lines. Intechvalve manufactures precision needle valves.
• Three Way Globe Valve — For mixing or diverting flow. Intechvalve offers customized three way configurations.

Disc Designs available from Intechvalve

• Ball Disc — Provides tight shut off and good throttling. Common in Intechvalve general purpose globe valves.
• Composition Disc — With soft insert for bubble tight shut off. Intechvalve uses this for gas and low pressure applications.
• Plug Type Disc — Long tapered plug for excellent throttling control. Intechvalve plug type discs are used in severe service conditions.

Use Cases for Intechvalve Globe Valves

• Flow regulation and throttling in process industries – Intechvalve globe valves provide accurate control.
• Steam systems – Our globe valves handle high temperature steam with specialized seat designs.
• Boiler feed water and drain systems – Intechvalve angle and Y pattern globe valves are standard in power plants.
• Cooling water and fuel oil systems – Reliable throttling with Intechvalve cast steel globe valves.
• Chemical dosing and pharmaceutical processes – Stainless steel Intechvalve globe valves ensure purity and corrosion resistance.
• High pressure drop applications – Where controlled pressure reduction is needed, Intechvalve globe valves excel.

At Intechvalve, we specialize in control. Our globe valves are engineered for applications requiring frequent operation, precise regulation, and reliable performance.
