Pressure Seal Parallel Gate Valve by Intechvalve – high pressure isolation with double block and bleed capability

What Is a Pressure Seal Parallel Gate Valve? – Intechvalve explains

At Intechvalve, we define a pressure seal parallel gate valve as a specialized gate valve designed for high pressure and high temperature services where positive isolation, double block and bleed capability, and low operating torque are required. Unlike conventional wedge gate valves that use a tapered wedge, the parallel gate valve features two parallel discs that are forced against the seats by a spring or line pressure when closed. This design provides bidirectional sealing and allows for thermal expansion without binding. The pressure seal bonnet connection uses internal pressure to enhance the seal – as line pressure increases, the sealing force on the gasket also increases, creating a tighter seal. This self sealing design allows Intechvalve pressure seal parallel gate valves to be lighter, more compact, and more economical than bolted bonnet valves for the same pressure class while providing superior sealing performance under high pressure conditions.

Key Features and Value Propositions of Intechvalve Pressure Seal Parallel Gate Valves

Self Sealing Bonnet Design: I design Intechvalve pressure seal parallel gate valves with a unique body bonnet connection where internal pressure forces the gasket against the sealing surfaces. Higher line pressure creates a tighter seal, ensuring leak free operation even under the most demanding conditions.

Parallel Disc Design: The parallel disc configuration provides positive isolation with double block and bleed capability. Intechvalve parallel gate valves feature two parallel discs that are forced against the seats, creating a tight seal on both sides.

Low Operating Torque: Unlike wedge gate valves that require high seating forces, Intechvalve parallel gate valves use line pressure to assist sealing, resulting in significantly lower operating torque and easier operation, especially important for large valves and automated applications.

Bidirectional Sealing: The parallel disc design provides effective sealing in both flow directions, offering installation flexibility and reliable isolation regardless of flow direction.

Thermal Expansion Accommodation: The parallel disc design allows for thermal expansion of the pipeline without binding, making Intechvalve pressure seal parallel gate valves ideal for high temperature cycling services.

Double Block and Bleed Capability: When specified, Intechvalve pressure seal parallel gate valves provide positive isolation on both seats, allowing the cavity between the discs to be bled to verify isolation – essential for critical safety applications.

Compact and Lightweight: Compared to conventional bolted bonnet valves of the same pressure class, Intechvalve pressure seal parallel gate valves are significantly smaller and lighter, reducing installation space requirements, support structure needs, and overall cost.

Wide Industry Use: From power generation (main steam, boiler feedwater), to oil and gas production (high pressure wells), refining (hydrocracking, catalytic cracking), and pipeline transmission, Intechvalve pressure seal parallel gate valves provide reliable isolation in critical high pressure services.

How It Works – Principle of Operation by Intechvalve

An Intechvalve pressure seal parallel gate valve operates using two parallel discs that are forced against the seat rings to create a seal. The discs are connected by a spreader mechanism that allows them to move apart slightly when the valve is closing. When the valve is fully closed, line pressure acts on the downstream disc, forcing it against the seat. Simultaneously, the upstream disc is forced against its seat through the spreader mechanism, creating a seal on both sides. This design provides bidirectional sealing and allows the cavity between the discs to be monitored or bled.

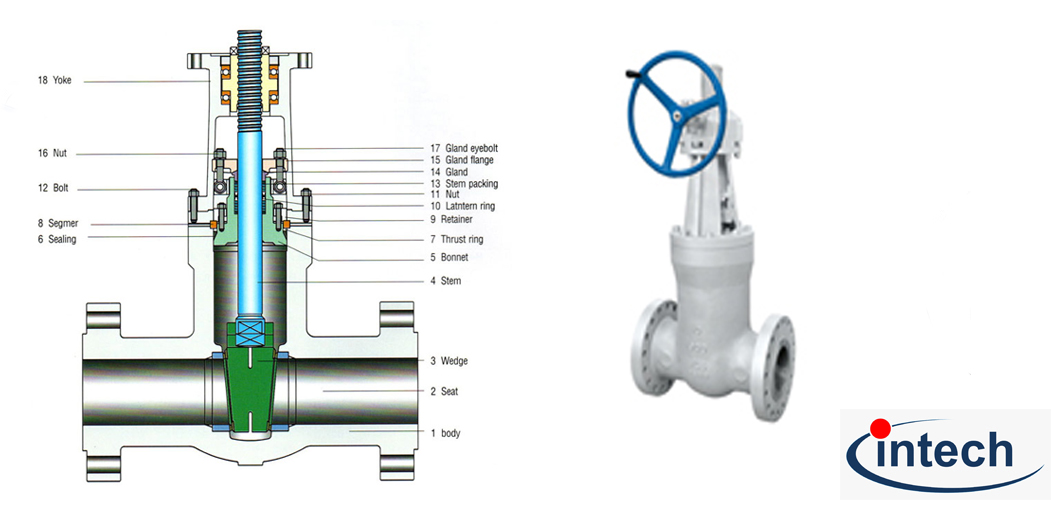

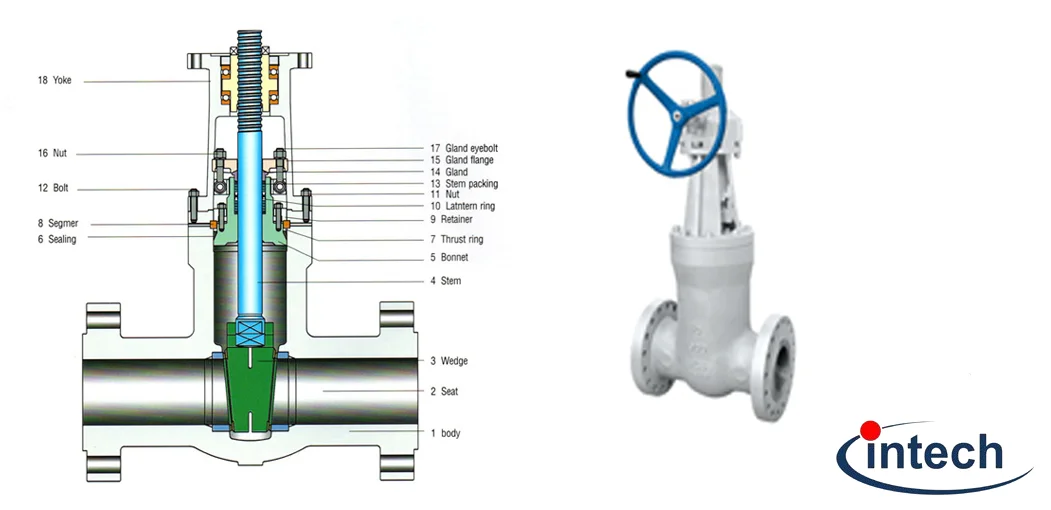

The pressure seal bonnet is installed inside the body and held in place by a retaining ring or yoke. A gasket, typically a corrugated stainless steel ring with graphite facing, is positioned between the bonnet and the body's tapered sealing surface. When the valve is pressurized, internal pressure acts on the bottom of the bonnet, forcing it upward and compressing the gasket against the body's tapered sealing surface. Higher pressure creates greater sealing force, ensuring a leak proof body bonnet joint.

When opening, the stem lifts the discs, first relaxing the sealing force, then lifting the discs completely out of the flow path, providing full bore unobstructed flow with minimal pressure drop.

Typical Technical Specifications – Intechvalve Pressure Seal Parallel Gate Valves

Common Types of Pressure Seal Parallel Gate Valves manufactured by Intechvalve

• Standard Pressure Seal Parallel Gate Valve — The most common design for high pressure isolation. Intechvalve standard parallel gate valves feature two parallel discs with a spreader mechanism that forces the discs against the seats when closed.
• Double Block and Bleed (DBB) Parallel Gate Valve — Features a bleed connection between the two seats, allowing the cavity to be vented to verify positive isolation on both seats. Intechvalve DBB parallel gate valves are essential for critical safety applications where absolute isolation must be verified.
• Expanding Gate Parallel Gate Valve — Advanced design where the discs expand mechanically at the end of the closing stroke to provide high seating force. Intechvalve expanding gate valves offer superior sealing with minimal operating torque.
• Slab Gate Valve — Features a single slab gate with through port, commonly used in pipeline applications. While technically a parallel gate design, Intechvalve slab gate valves offer different characteristics and are available with pressure seal bonnets for high pressure pipelines.
• Pressure Seal Parallel Gate Valve for Power Generation — Specifically designed for main steam, boiler feedwater, and turbine isolation services in thermal power plants, with materials and testing to meet power industry requirements.
• Pressure Seal Parallel Gate Valve for Refining and Petrochemical — Designed for high pressure hydrocracking, catalytic cracking, and other refining processes with appropriate trim materials for hydrocarbon service and optional DBB capability.

Parallel Gate vs Wedge Gate – Intechvalve Selection Guide

• Parallel Gate Valve from Intechvalve: Features two parallel discs that seal against parallel seats. Lower operating torque, accommodates thermal expansion without binding, provides bidirectional sealing, and can be configured for double block and bleed service. Ideal for high temperature cycling services, critical isolation applications, and where low operating torque is important.
• Wedge Gate Valve from Intechvalve: Features a tapered wedge that seals against angled seats. Higher seating forces, simpler construction, and more tolerant of minor seat damage. Ideal for general isolation services where temperature variations are minimal and double block and bleed capability is not required.
• Intechvalve Recommendation: For high temperature cycling services, critical isolation requiring double block and bleed, and applications where low operating torque is important, Intechvalve pressure seal parallel gate valves are the preferred choice. For general high pressure isolation with stable temperatures, wedge gate valves offer simplicity and economy.

Applications for Intechvalve Pressure Seal Parallel Gate Valves

• Power generation – Intechvalve pressure seal parallel gate valves provide reliable isolation in main steam lines, boiler feedwater systems, turbine stop valves, and supercritical steam applications where thermal cycling and positive isolation are critical.
• Oil and gas production – High pressure wells, production manifolds, and isolation services use Intechvalve parallel gate valves for reliable shut off with double block and bleed capability where required.
• Refining industry – Hydrocracking units, catalytic crackers, and high pressure hydrotreaters require Intechvalve pressure seal parallel gate valves for critical isolation and DBB applications.
• Petrochemical processing – High pressure processes including ammonia synthesis, methanol production, and ethylene manufacturing use Intechvalve parallel gate valves for reliable isolation.
• Pipeline transmission – High pressure gas transmission pipelines and compressor stations use pressure seal parallel gate valves for mainline isolation where positive shut off is essential.
• Combined cycle power plants – Heat recovery steam generator (HRSG) isolation and steam turbine stop valves use Intechvalve pressure seal parallel gate valves for reliable high temperature service.

At Intechvalve, we specialize in high pressure isolation solutions. Our pressure seal parallel gate valves are engineered to provide positive, leak tight isolation in the most demanding high pressure and high temperature applications, with self sealing bonnet, parallel disc design for low torque operation, and optional double block and bleed capability for critical safety services.
