Pressure Seal Globe Valve by Intechvalve – high pressure throttling and isolation for critical services

What Is a Pressure Seal Globe Valve? – Intechvalve explains

At Intechvalve, we define a pressure seal globe valve as a specialized globe valve designed for high pressure and high temperature services where conventional bolted bonnet valves become impractical due to the massive flange size and bolt requirements. The pressure seal valve uses a unique body bonnet connection that leverages internal pressure to enhance the seal. As line pressure increases, the sealing force on the gasket also increases, creating a tighter seal. This self sealing design allows Intechvalve pressure seal globe valves to be lighter, more compact, and more economical than bolted bonnet valves for the same pressure class while providing superior sealing performance under high pressure conditions. Unlike gate valves which are primarily for isolation, Intechvalve pressure seal globe valves excel at throttling, flow regulation, and precise control in high pressure applications including main steam systems, boiler feedwater, turbine bypass, and high pressure process lines.

Key Features and Value Propositions of Intechvalve Pressure Seal Globe Valves

Self Sealing Bonnet Design: I design Intechvalve pressure seal globe valves with a unique body bonnet connection where internal pressure forces the gasket against the sealing surfaces. Higher line pressure creates a tighter seal, ensuring leak free operation even under the most demanding conditions.

Excellent Throttling Capability: The linear motion design of Intechvalve pressure seal globe valves provides precise flow control, making them ideal for regulating high pressure steam, water, and process fluids where accurate control is essential.

Compact and Lightweight: Compared to conventional bolted bonnet valves of the same pressure class, Intechvalve pressure seal globe valves are significantly smaller and lighter, reducing installation space requirements, support structure needs, and overall cost.

High Pressure Capability: Intechvalve pressure seal globe valves are designed for high pressure services from Class 600 up to Class 4500, handling pressures that would require massive flanges and numerous bolts in conventional designs.

High Temperature Service: With appropriate material selection, Intechvalve pressure seal globe valves handle temperatures up to 650 degrees Celsius, making them ideal for power generation and high temperature process applications.

Superior Sealing Performance: The pressure energized seal provides reliable, leak tight operation under all operating conditions, from low pressure startup to full pressure operation.

Multiple Disc Designs: Intechvalve pressure seal globe valves are available with various disc designs including plug type for excellent throttling, ball type for general service, and needle type for fine flow control.

Wide Industry Use: From power generation (main steam, boiler feedwater, turbine bypass, drain systems), to oil and gas production, refining, and petrochemical processing, Intechvalve pressure seal globe valves provide reliable throttling and isolation in critical high pressure services.

How It Works – Principle of Operation by Intechvalve

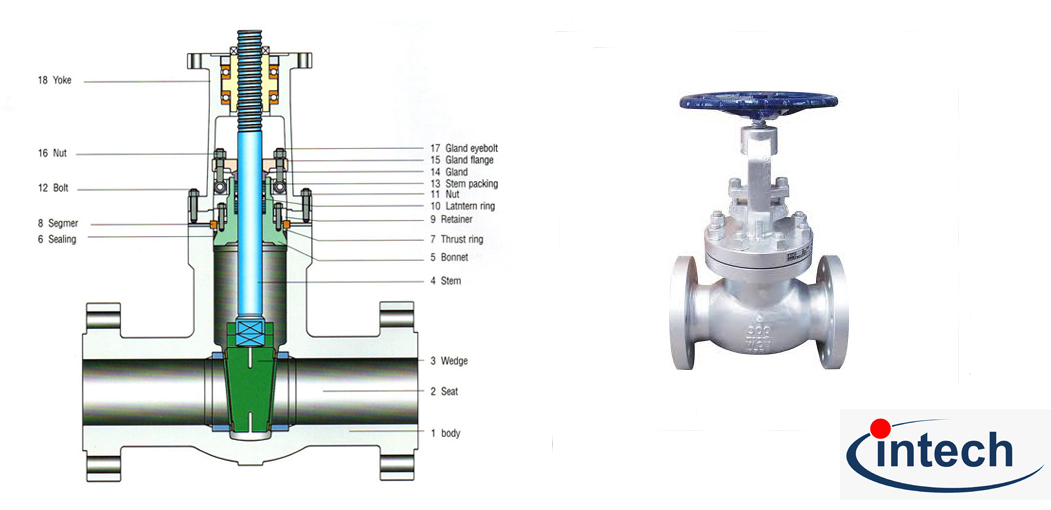

An Intechvalve pressure seal globe valve operates similarly to a conventional globe valve but with a fundamentally different body bonnet sealing mechanism. The bonnet is installed inside the body and held in place by a retaining ring or yoke. A gasket, typically a corrugated stainless steel ring with graphite facing, is positioned between the bonnet and the body's tapered sealing surface. When the valve is pressurized, internal pressure acts on the bottom of the bonnet, forcing it upward and compressing the gasket against the body's tapered sealing surface. Higher pressure creates greater sealing force, ensuring a leak proof seal.

The flow control mechanism consists of a disc that moves linearly against a stationary seat. When the handwheel or actuator rotates the stem, the disc moves toward or away from the seat. In the closed position, the disc seats tightly against the seat ring, stopping flow. In open or throttling positions, the disc is lifted away from the seat, allowing flow through the valve. The flow path in an Intechvalve pressure seal globe valve typically enters below the seat and exits above the disc, ensuring that when the valve closes, pressure helps seat the disc tightly. This design provides excellent control characteristics, with the linear motion allowing infinite positioning between fully open and fully closed for precise throttling.

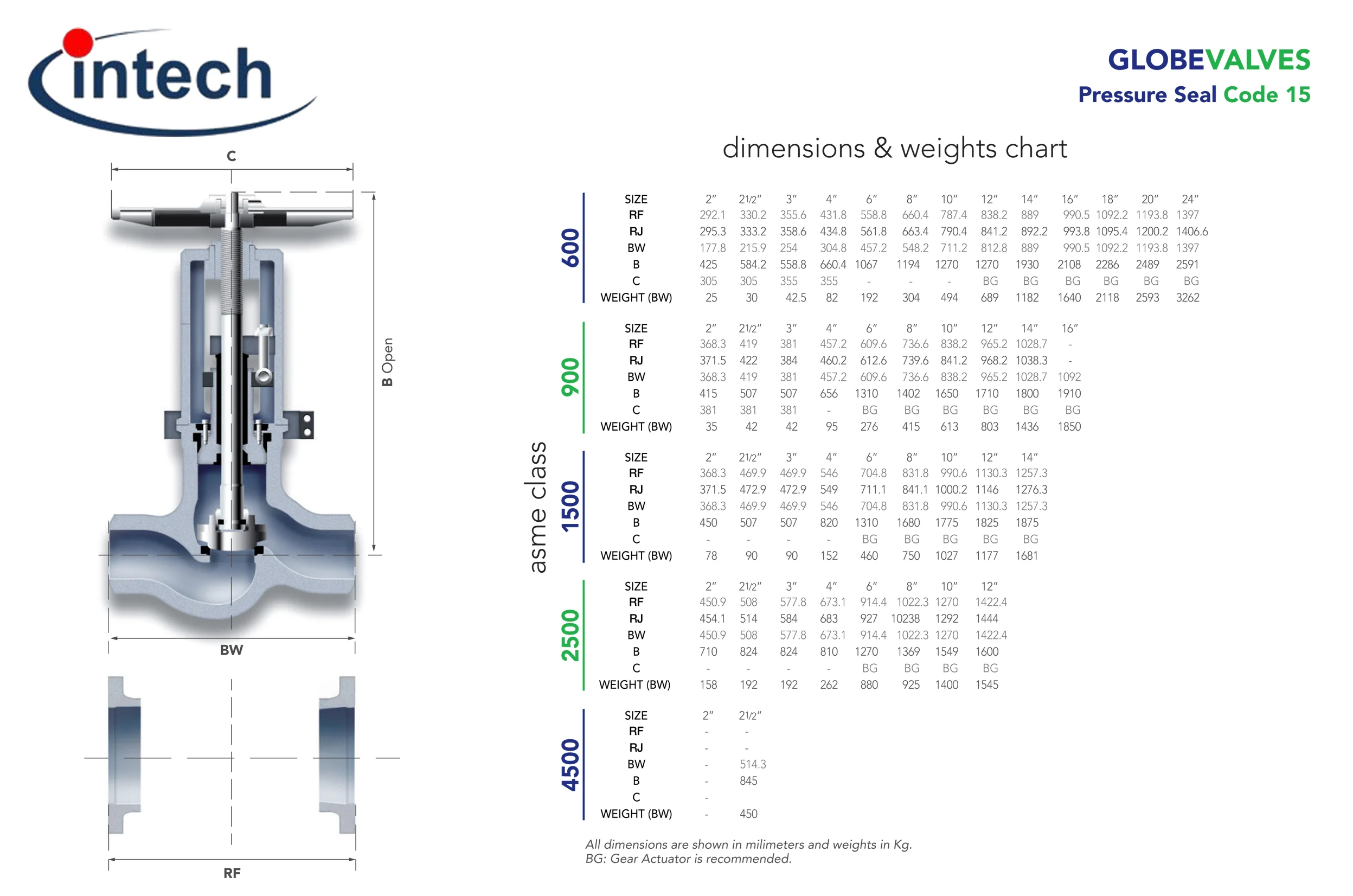

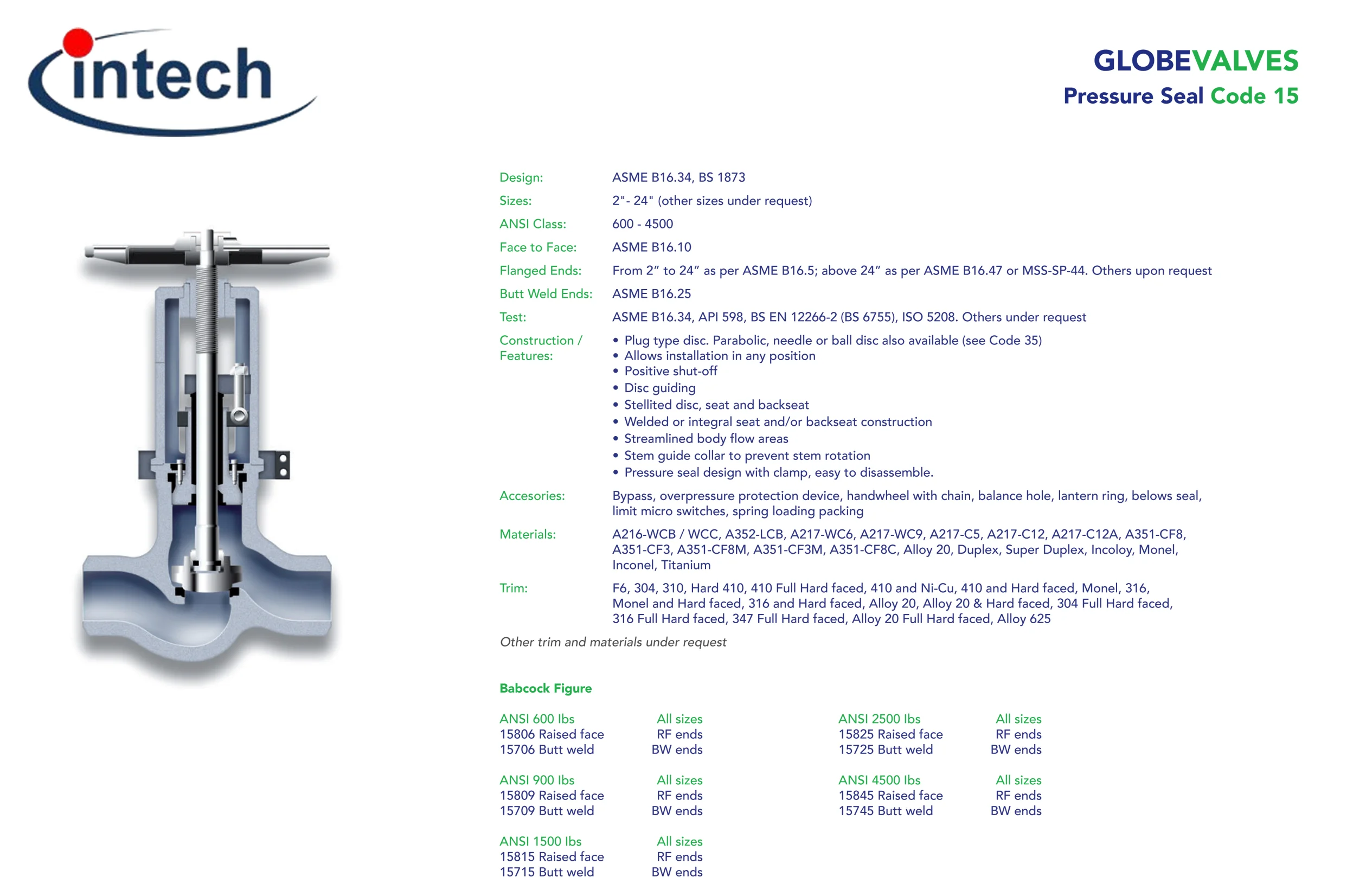

Typical Technical Specifications – Intechvalve Pressure Seal Globe Valves

Common Types of Pressure Seal Globe Valves manufactured by Intechvalve

• Plug Type Pressure Seal Globe Valve — Features a long tapered plug disc that provides excellent throttling characteristics throughout the stroke. Intechvalve plug type pressure seal globe valves are ideal for severe service conditions requiring precise flow control and high pressure drop applications.
• Ball Type Pressure Seal Globe Valve — Features a ball shaped disc for general throttling and isolation services. Intechvalve ball type pressure seal globe valves offer good control characteristics and are suitable for a wide range of high pressure applications.
• Needle Type Pressure Seal Globe Valve — Features a needle point disc for very fine flow control in small bore lines. Intechvalve needle type pressure seal globe valves are used in instrument lines, sampling systems, and precise control applications.
• Y Pattern Pressure Seal Globe Valve — Features a body at 45 degree angle, offering lower pressure drop compared to standard T pattern globe valves. Intechvalve Y pattern pressure seal globe valves are ideal for high pressure steam and high velocity services where pressure drop must be minimized.
• Angle Pattern Pressure Seal Globe Valve — Features an angle body design where fluid enters horizontally and exits vertically downward. Intechvalve angle pattern pressure seal globe valves are used in boiler feedwater, drain systems, and applications where the piping changes direction.
• Pressure Seal Globe Valve with Gear Operator — For larger sizes and higher pressures, gear operators reduce manual operating effort. Intechvalve pressure seal globe valves are available with bevel gear operators for easy operation.
• Pressure Seal Globe Valve for Power Generation — Specifically designed for main steam drain, boiler feedwater recirculation, turbine bypass, and high pressure heater isolation in thermal power plants, with materials and testing to meet power industry requirements.

Pressure Seal Globe Valve Applications from Intechvalve

• Power generation – Intechvalve pressure seal globe valves are essential components in thermal power plants, used for main steam drain systems, boiler feedwater recirculation, turbine bypass, high pressure heater isolation, and supercritical steam applications where precise control and high pressure capability are required.
• Boiler systems – Feedwater control, startup vents, drain valves, and soot blower isolation use Intechvalve pressure seal globe valves for reliable throttling and isolation at high pressures and temperatures.
• Oil and gas production – High pressure wells, production manifolds, and flow control applications use Intechvalve pressure seal globe valves for precise regulation of production fluids.
• Refining industry – Hydrocracking units, catalytic crackers, and high pressure hydrotreaters require Intechvalve pressure seal globe valves for process control and letdown applications.
• Petrochemical processing – High pressure processes including ammonia synthesis, methanol production, and ethylene manufacturing use Intechvalve pressure seal globe valves for critical flow control.
• Pipeline transmission – Pressure regulating stations and surge control applications in high pressure gas and liquid pipelines use Intechvalve pressure seal globe valves.
• Combined cycle power plants – Heat recovery steam generator (HRSG) drain and vent systems, steam turbine bypass, and attemperator control use Intechvalve pressure seal globe valves.

At Intechvalve, we specialize in high pressure flow control solutions. Our pressure seal globe valves are engineered to provide precise throttling and reliable isolation in the most demanding high pressure and high temperature applications, with compact design, self sealing bonnet, and materials selected for long service life in critical power generation, oil and gas, and refining services.
