What Is a Pressure Seal Gate Valve? – Intechvalve explains

At Intechvalve, we define a pressure seal gate valve as a specialized gate valve designed for high pressure and high temperature services where conventional bolted bonnet valves become impractical due to the massive flange size and bolt requirements. The pressure seal valve gets its name from the unique body bonnet connection that uses internal pressure to enhance the seal. As line pressure increases, the sealing force on the gasket also increases, creating a tighter seal. This self sealing design allows Intechvalve pressure seal gate valves to be lighter, more compact, and more economical than bolted bonnet valves for the same pressure class while providing superior sealing performance under high pressure conditions. Every Intechvalve pressure seal gate valve is engineered for critical services including main steam lines, boiler feedwater, supercritical applications, and high pressure pipelines.

Key Features and Value Propositions of Intechvalve Pressure Seal Gate Valves

Self Sealing Bonnet Design: I design Intechvalve pressure seal gate valves with a unique body bonnet connection where internal pressure forces the gasket against the sealing surfaces. Higher line pressure creates a tighter seal, ensuring leak free operation even under the most demanding conditions.

Compact and Lightweight: Compared to conventional bolted bonnet valves of the same pressure class, Intechvalve pressure seal gate valves are significantly smaller and lighter, reducing installation space requirements, support structure needs, and overall cost.

High Pressure Capability: Intechvalve pressure seal gate valves are designed for high pressure services from Class 600 up to Class 4500, handling pressures that would require massive flanges and numerous bolts in conventional designs.

High Temperature Service: With appropriate material selection, Intechvalve pressure seal gate valves handle temperatures up to 650 degrees Celsius, making them ideal for power generation and high temperature process applications.

Superior Sealing Performance: The pressure energized seal provides reliable, leak tight operation under all operating conditions, from low pressure startup to full pressure operation.

Flexible Wedge Design: Intechvalve pressure seal gate valves feature flexible wedge designs that compensate for thermal expansion and prevent binding during temperature changes, ensuring reliable operation in cyclic services.

Multiple End Connections: Available with butt weld, socket weld, or flanged ends to match your piping system requirements, with butt weld ends being the most common for high pressure applications.

Wide Industry Use: From power generation (main steam, boiler feedwater, turbine isolation), to oil and gas production (high pressure wells), refining (hydrocracking, catalytic cracking), and petrochemical processing, Intechvalve pressure seal gate valves provide reliable isolation in critical high pressure services.

How It Works – Principle of Operation by Intechvalve

An Intechvalve pressure seal gate valve operates similarly to a conventional gate valve but with a fundamentally different body bonnet sealing mechanism. The bonnet is installed inside the body and held in place by a retaining ring or yoke. A gasket, typically a corrugated stainless steel ring with graphite facing, is positioned between the bonnet and the body. When the valve is pressurized, internal pressure acts on the bottom of the bonnet, forcing it upward and compressing the gasket against the body's tapered sealing surface. Higher pressure creates greater sealing force, ensuring a leak proof seal. The gate, seat rings, and stem operate identically to conventional gate valves, with the wedge moving vertically to open or close the flow path. This self sealing principle eliminates the need for large flanges and numerous high strength bolts, resulting in a more compact, lighter, and cost effective valve for high pressure services.

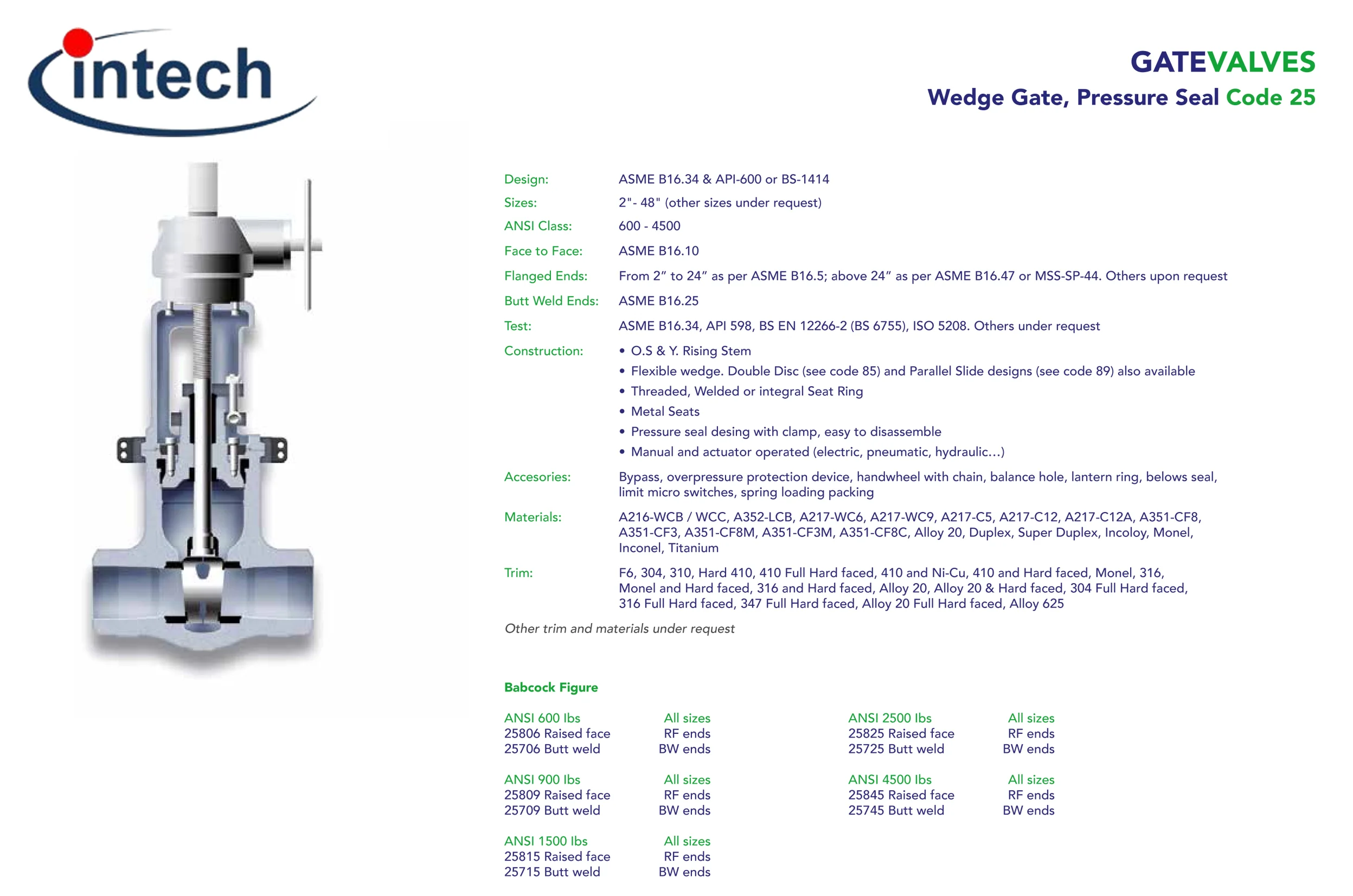

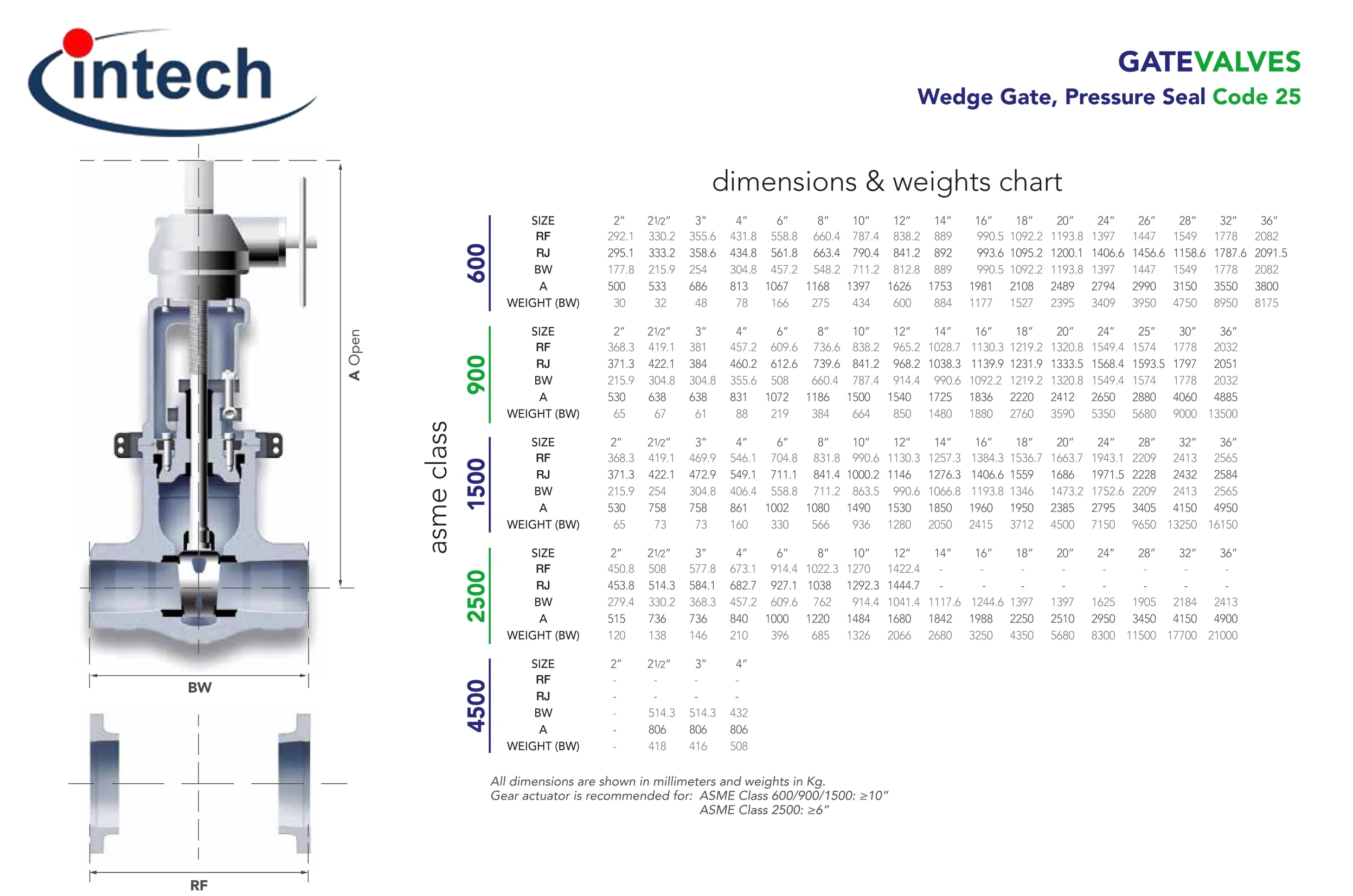

Typical Technical Specifications – Intechvalve Pressure Seal Gate Valves

Common Types of Pressure Seal Gate Valves manufactured by Intechvalve

• Flexible Wedge Pressure Seal Gate Valve — The most common design for high pressure and high temperature services. Intechvalve flexible wedge pressure seal gate valves compensate for thermal expansion and contraction, preventing binding during temperature changes and ensuring reliable operation in cyclic services like power plants.
• Solid Wedge Pressure Seal Gate Valve — Simple, rugged design for general high pressure service where temperature variations are minimal. Intechvalve solid wedge valves offer simplicity and strength.
• Split Wedge Pressure Seal Gate Valve — Two piece wedge design that provides excellent sealing even with minor misalignment or distortion. Intechvalve split wedge valves are used in critical applications requiring maximum sealing reliability.
• OS and Y (Outside Screw and Yoke) Pressure Seal Gate Valve — Rising stem design where the stem threads are outside the valve body, protected from the process fluid. Intechvalve OS and Y pressure seal gate valves provide visual position indication and are standard for high pressure services.
• Pressure Seal Gate Valve with Bypass — Equipped with a smaller bypass valve to equalize pressure across the main valve before opening, reducing operating torque and preventing seat damage. Intechvalve offers bypass options for large valves and high pressure applications.
• Pressure Seal Gate Valve with Gear Operator — For larger sizes and higher pressures, gear operators reduce manual operating effort. Intechvalve pressure seal gate valves are available with bevel gear, spur gear, or worm gear operators.
• Pressure Seal Gate Valve for Power Generation — Specifically designed for main steam, reheat, boiler feedwater, and turbine isolation services in thermal and nuclear power plants, with materials and testing to meet power industry requirements.
• Pressure Seal Gate Valve for Refining and Petrochemical — Designed for high pressure hydrocracking, catalytic cracking, and other refining processes with appropriate trim materials for hydrocarbon service.

Pressure Seal vs Bolted Bonnet – Intechvalve Selection Guide

• Pressure Seal Gate Valve from Intechvalve: Features a self sealing bonnet where internal pressure enhances the seal. More compact and lighter than bolted bonnet valves for the same pressure class. Ideal for Class 600 and higher, especially in power generation and high temperature services. The pressure energized seal provides tighter sealing as pressure increases.
• Bolted Bonnet Gate Valve from Intechvalve: Features a conventional flanged bonnet with studs and nuts. Suitable for low to medium pressure applications up to Class 600. Simpler construction, easier to repair in the field, and more economical for lower pressure classes.
• Intechvalve Recommendation: For applications above Class 600, for high temperature services, and where weight and space savings are important, Intechvalve pressure seal gate valves are the preferred choice. For applications Class 600 and below, conventional bolted bonnet valves are typically more economical.

Applications for Intechvalve Pressure Seal Gate Valves

• Power generation – Intechvalve pressure seal gate valves are essential components in thermal power plants, used for main steam isolation, reheat lines, boiler feedwater, turbine stop valves, and supercritical steam applications where pressures exceed Class 1500 and temperatures reach 600 degrees Celsius.
• Oil and gas production – High pressure wells, wellhead isolation, and production manifolds use Intechvalve pressure seal gate valves for reliable shut off at pressures up to Class 4500.
• Refining industry – Hydrocracking units, catalytic crackers, and high pressure hydrotreaters require Intechvalve pressure seal gate valves to handle hydrogen service at elevated pressures and temperatures.
• Petrochemical processing – High pressure processes including ammonia synthesis, methanol production, and ethylene manufacturing use Intechvalve pressure seal gate valves for critical isolation.
• Pipeline transmission – High pressure gas transmission pipelines and compressor stations use pressure seal gate valves for mainline isolation where pressures exceed Class 600.
• Boiler systems – Main steam stop valves, boiler feedwater isolation, and superheater outlet valves in industrial and utility boilers use Intechvalve pressure seal gate valves.
• Combined cycle power plants – Heat recovery steam generator (HRSG) isolation and steam turbine stop valves use Intechvalve pressure seal gate valves for reliable high temperature service.

At Intechvalve, we specialize in high pressure flow control solutions. Our pressure seal gate valves are engineered to provide reliable, leak tight isolation in the most demanding high pressure and high temperature applications, with compact design, self sealing bonnet, and materials selected for long service life in critical power generation, oil and gas, and refining services.
