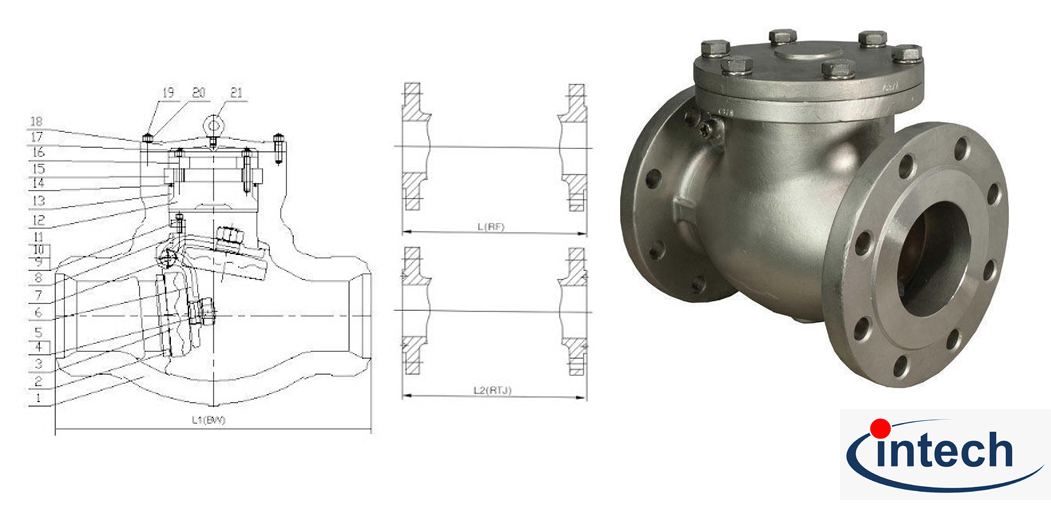

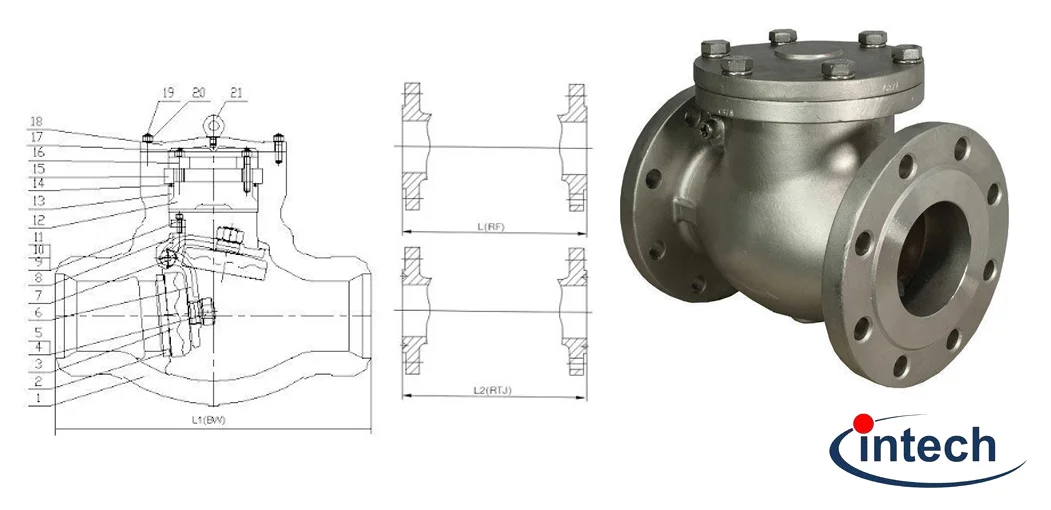

Pressure Seal Swing Check Valve by Intechvalve – high pressure backflow prevention for critical services

What Is a Pressure Seal Swing Check Valve? – Intechvalve explains

At Intechvalve, we define a pressure seal swing check valve as a specialized check valve designed for high pressure and high temperature services where conventional bolted cover valves become impractical due to the massive flange size and bolt requirements. The pressure seal valve uses a unique body cover connection that leverages internal pressure to enhance the seal. As line pressure increases, the sealing force on the gasket also increases, creating a tighter seal. This self sealing design allows Intechvalve pressure seal swing check valves to be lighter, more compact, and more economical than bolted cover valves for the same pressure class while providing superior sealing performance under high pressure conditions. Like standard swing check valves, Intechvalve pressure seal swing check valves operate automatically, using a hinged disc that swings open under forward flow and closes when flow reverses, preventing backflow and protecting pumps, compressors, and other equipment in high pressure systems.

Key Features and Value Propositions of Intechvalve Pressure Seal Swing Check Valves

Self Sealing Cover Design: I design Intechvalve pressure seal swing check valves with a unique body cover connection where internal pressure forces the gasket against the sealing surfaces. Higher line pressure creates a tighter seal, ensuring leak free operation even under the most demanding conditions.

Compact and Lightweight: Compared to conventional bolted cover valves of the same pressure class, Intechvalve pressure seal swing check valves are significantly smaller and lighter, reducing installation space requirements, support structure needs, and overall cost.

High Pressure Capability: Intechvalve pressure seal swing check valves are designed for high pressure services from Class 600 up to Class 4500, handling pressures that would require massive flanges and numerous bolts in conventional designs.

High Temperature Service: With appropriate material selection, Intechvalve pressure seal swing check valves handle temperatures up to 650 degrees Celsius, making them ideal for power generation and high temperature process applications.

Full Bore Flow: When fully open, the disc swings completely out of the flow path, providing unobstructed flow with minimal pressure drop across the Intechvalve pressure seal swing check valve, essential for high pressure system efficiency.

Superior Sealing Performance: The pressure energized seal provides reliable, leak tight operation of the body cover joint under all operating conditions, from low pressure startup to full pressure operation.

Renewable Seat Design: Intechvalve pressure seal swing check valves feature renewable seat rings that can be replaced without replacing the entire valve, extending service life and reducing maintenance costs.

Wide Industry Use: From power generation (main steam, boiler feedwater, turbine discharge), to oil and gas production (high pressure wells), refining (hydrocracking, catalytic cracking), and petrochemical processing, Intechvalve pressure seal swing check valves provide reliable backflow prevention in critical high pressure services.

How It Works – Principle of Operation by Intechvalve

An Intechvalve pressure seal swing check valve operates automatically based on flow direction, with the same fundamental mechanism as a standard swing check valve but with a pressure seal cover design. The valve consists of a body with a pressure seal cover, a hinged disc, and a seat ring. Under forward flow conditions, fluid pressure pushes the disc open, swinging it upward and inward to allow flow through the valve. When forward flow stops or reverses, gravity and reverse flow pressure cause the disc to swing back onto the seat, creating a tight seal that prevents backflow.

The pressure seal cover is installed inside the body and held in place by a retaining ring or yoke. A gasket, typically a corrugated stainless steel ring with graphite facing, is positioned between the cover and the body's tapered sealing surface. When the valve is pressurized, internal pressure acts on the bottom of the cover, forcing it upward and compressing the gasket against the body's tapered sealing surface. Higher pressure creates greater sealing force, ensuring a leak proof body cover joint. This self sealing design eliminates the need for large flanges and numerous high strength bolts, resulting in a more compact, lighter, and cost effective valve for high pressure services.

Typical Technical Specifications – Intechvalve Pressure Seal Swing Check Valves

Common Types of Pressure Seal Swing Check Valves manufactured by Intechvalve

• Standard Pressure Seal Swing Check Valve — The most common design for high pressure backflow prevention. Intechvalve standard pressure seal swing check valves feature a single hinged disc that swings open under forward flow and closes when flow reverses, providing reliable automatic operation.
• Pressure Seal Swing Check Valve with Lever and Weight — Assisted closing mechanism for faster response and reduced water hammer in critical applications. Intechvalve offers lever and weight options for systems where rapid flow reversal is possible.
• Pressure Seal Swing Check Valve with Dashpot — Hydraulic damping mechanism to control disc closing speed and eliminate slamming. Intechvalve dashpot equipped valves are ideal for surge sensitive high pressure systems.
• Pressure Seal Swing Check Valve for Power Generation — Specifically designed for main steam, feedwater, and turbine discharge services in thermal power plants, with materials and testing to meet power industry requirements.
• Pressure Seal Swing Check Valve for Refining and Petrochemical — Designed for high pressure hydrocracking, catalytic cracking, and other refining processes with appropriate trim materials for hydrocarbon service.
• Pressure Seal Tilting Disc Check Valve — Alternative design where the disc tilts rather than swings, offering faster response and reduced pressure drop for certain applications. Intechvalve offers tilting disc check valves with pressure seal covers for specialized services.

Pressure Seal Swing Check Valve Applications from Intechvalve

• Power generation – Intechvalve pressure seal swing check valves protect main steam lines, boiler feedwater pumps, turbine extraction lines, and feedwater heaters from reverse flow damage in high pressure steam cycles.
• Boiler systems – Discharge side of boiler feedwater pumps, economizer recirculation, and startup systems use Intechvalve pressure seal swing check valves for reliable backflow prevention.
• Oil and gas production – High pressure wells, production manifolds, and injection systems use Intechvalve pressure seal swing check valves to prevent backflow and protect downhole equipment.
• Refining industry – Hydrocracking units, catalytic crackers, and high pressure hydrotreaters require Intechvalve pressure seal swing check valves to prevent reverse flow in critical process lines.
• Petrochemical processing – High pressure processes including ammonia synthesis, methanol production, and ethylene manufacturing use Intechvalve pressure seal swing check valves for equipment protection.
• Pipeline transmission – High pressure gas transmission pipelines and compressor stations use pressure seal swing check valves for backflow prevention at compressor discharge and pipeline isolation points.
• Combined cycle power plants – Heat recovery steam generator (HRSG) feedwater and steam systems use Intechvalve pressure seal swing check valves for reliable protection.

At Intechvalve, we specialize in high pressure flow control solutions. Our pressure seal swing check valves are engineered to provide reliable automatic backflow prevention in the most demanding high pressure and high temperature applications, with compact design, self sealing cover, and materials selected for long service life in critical power generation, oil and gas, and refining services.
